Innovative Production Machine Builders
Our Services
Turn Key Shutter Manufacturing Automation
Save money by automating your production lines
Custom Built Machines
Our Standard and Custom machines will be game changers in your production operation
Products

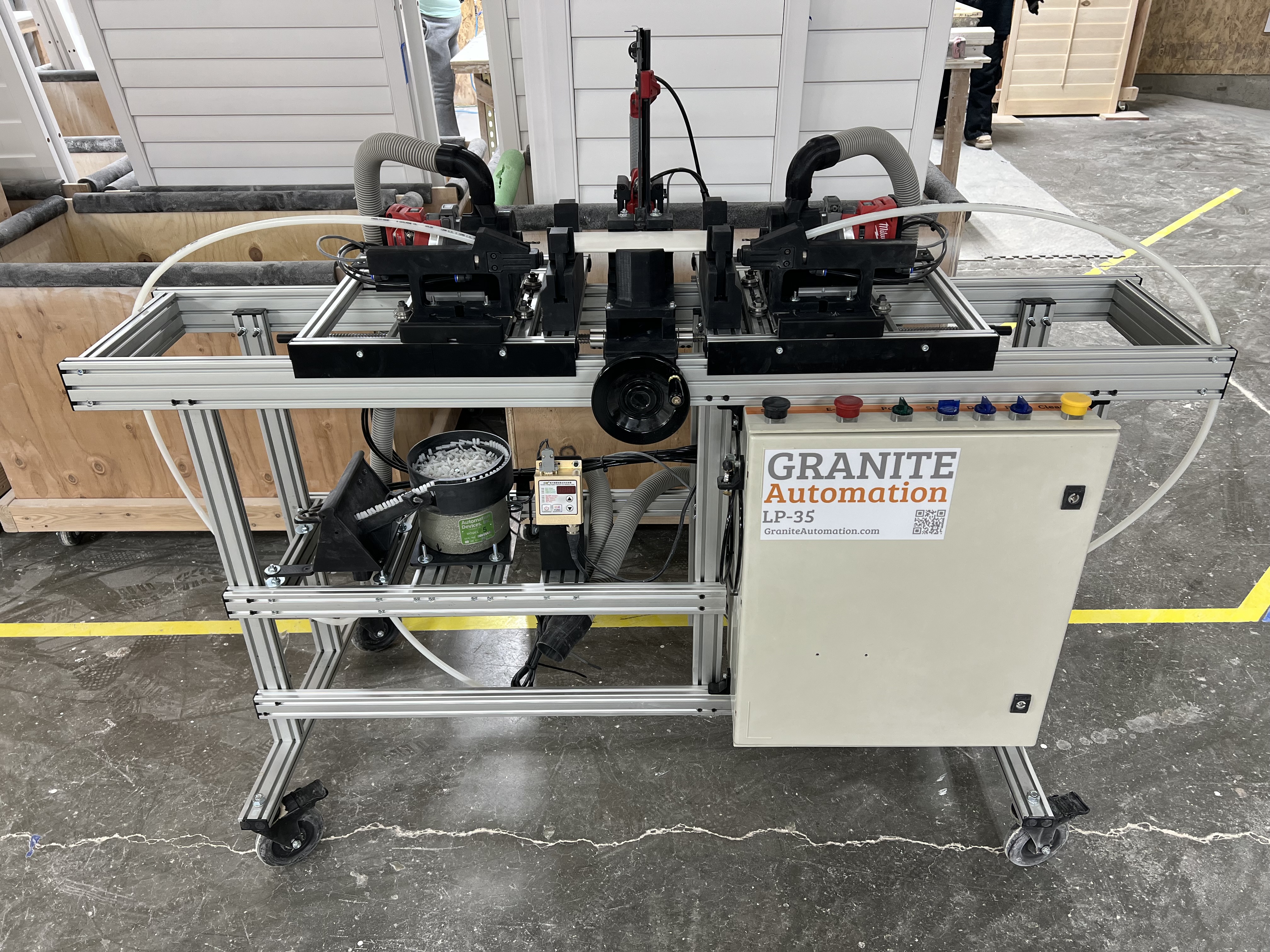

LPM (Louver Processing Machine)
The Granite Automation Louver Processing Machine (LPM) is a standalone machine to automate louver component processing in plantation shutter production chains. It accommodates louver lengths up to 34 inches for 2.5, 3.5, 4.5, and 5.5 inch material. Louver size, staple, pin insertion are easily selected. Simply place a pre-cut louver into the machine to have pin holes drilled, pins inserted, and a staple placed at the center point of the louver.
Features
- Durabel aluminum stand set at a convenient working height with lockable casters
- Standard 120 VAC power connection
- Utilizes Air regulator with a quick connect to shop air supply
- Brushless DC Drill Motors
- Precision Ball Screw slide tables to secure both ends of louvers for accurate drilling and pin insertion
- High quality commercial grade stapler
- Tech friendly plug and play electronics housed in a protective enclosure
Lead time 30 days from receipt of order
Price $29,000 USD (50% with order, balance due on delivery)
FOB, Logan Utah
DSD (Dual Stile Drill)
The Granite Automation Dual Stile Drill (DSD) Automates the process of drilling stiles in the plantation shutter production chain. It quickly and accurately drills dowel and louver holes in standard stile material for 2.5, 3.5, 4.5, 5.5 louver sizes. Not only does this speed production but does so with precision and repeatability. The DSD utilizes a user-friendly touch screen interface to the computer control unit. Louver size, number of louvers, and midrail options are easily selected to enable automatic machine setup. Simply place two stiles into the machine to have dowel and louver holes drilled with accuracy and ease. Spacing from dowels to louver holes and midrail templates are user customizable to preferred specifications so you can maintain your present operational preferences. The DSD will do precision Hole Strip drilling with the available adapter option.
Features
- Powder coated steel tube stand set at a convenient working height with lockable casters
- Standard 120 VAC power connection
- Utilizes Air regulator with a quick connect to shop air supply
- Brushless DC Drill Motors
- Precision Stepper motors drive the Drill Gantry quickly and accurately
- Tech friendly plug and play electronics housed in a protective enclosure
Lead time 60 days from receipt of order
Price $52,000 USD (50% with order, balance due on delivery)
FOB, Logan Utah
Specialty Profile Forming Oven
The Granite Automation Specialty Profile Forming Oven (SPFO) simplifies the heating process for shaping PVC material in a consistent and repeatable manner. It includes a Top Loading Lid supported by heavy duty hinges and a secure lid stop. The internal shelf provides full length support of PVC profile for uniform and safe warming in just minutes. The thermostat provides consistent and even heat throughout the insulated oven box. The included legs place the oven at a comfortable standing working height. It ships ready to use by simply attaching the included locking caster legs.
Features
- Inside Dimensions 156” L x 8” W x 12” D
- Power Requirement 220VAC 20Amp Single Phase
- Included AC Cord
- Thermostat Range 0-300 Deg F
- Galvanized Steel Construction
- High Tech Rigid Fiber Insulation reduces heat loss
Lead time 60 days from receipt of order
Price $12,500 USD (50% with order, balance due on delivery)
FOB, Logan Utah
Experienced in Setting up Shutter Manufacturing Lines on multiple continents
We have the experience to back our products. We know how to automate and setup efficient manufacturing lines
Client Testimonials
The equipment from Granite Automation has made it possible for us to quickly enter the Plantation Shutter Manufacturing business. With zero prior experience we have all of the tools and processes to succeed in a very efficient way.
The Granite Automation Dual Stile Drill has been a great addition to our Plantation shutter production line. It is very reliable and gives us improved accuracy and a great increase in speed. The DSD is very reliable and just runs day in and day out. It has facilitated a significant reduction in our daily labor hours in this department. Definately a 5-star product.
As a user of the Granite Specialty Profile Forming Oven I highly recommend this product. We have shaped hundreds of specialty openings with this oven. The design is great and it fits right in with our production operations.
